Samrat brings you the finest collection of shades, colors and Textures that add soothing and ethereal touch to your spaces. The laminates developed by Samrat gives your space a rich and elegant look.
Manufacturing Details
Manufactured from selected timber & solid core construction.Doors are framed in seasoned hard wood battens & pressed at high pressure with phenol formaldehyde.
Advantage
Application

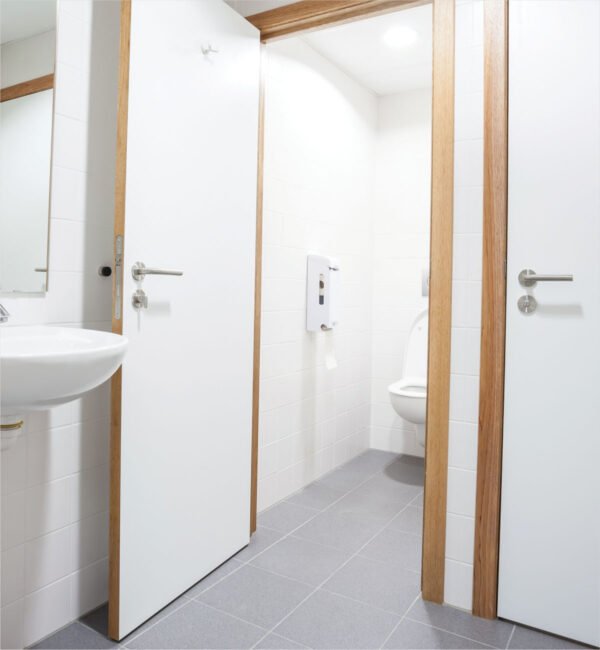

Flush Door – ideal where water splashing is common such as toilet , bathroom & balcony Doors.Decorative Flush Door – where elegance is required, widely used for entrance, living area doors,Toilet, Bathroom & Balcony Doors.
Technical Details
Test Results
Moisture Content – 5% To 10%
Dimensions & Squarness – Length & width shall be within a limit – should notexceed 6 mm
Impact Test – The Depth of denotation should not be more than 0.2 mm by 500gm steel ball.
Flexure Test – The deflection at a load of 50kg shall not be more than 1/10 of length & 1/15 of width which ever is less.
Edging Bending Test – Deflection after applying load of 100 kg should not exceed 5mm. Residual deflection should notexceed 0.5mm & Lateral bending not more than 2mm.
Shock Resistance Tes – No visible damage after 25 blows of 30 kg bags
Slamming of Shutter – No visible damage after 50 impacts
Moisture Test – No deformation
Varying Humidity test – Recovery of the original size after subjecting the door to high & low humidity is excellent
Glue Adhesion – Glue line between plywood face & core does not show any signs of delimitation
Knife Test – Excellent
Screw holding strength – More than 1500 N
Specific Gravity – 0.55 To 0.60
Water absorption – Less then 1 %
Screw withdrawal Test – More than 1000N
Nail holding strength – More than 500 N
| Variant | Flush Doors |
|---|---|
| Product | Semi Hardwood |
| Grade | BWP |
| IS Specifications | 2202 |
| Thickness | 30mm / 32mm / 35mm / 38mm / 40mm / 45mm / 50mm |
| Dimension | Customized |
| Warranty | 0 |
